Model No: TEK661100E

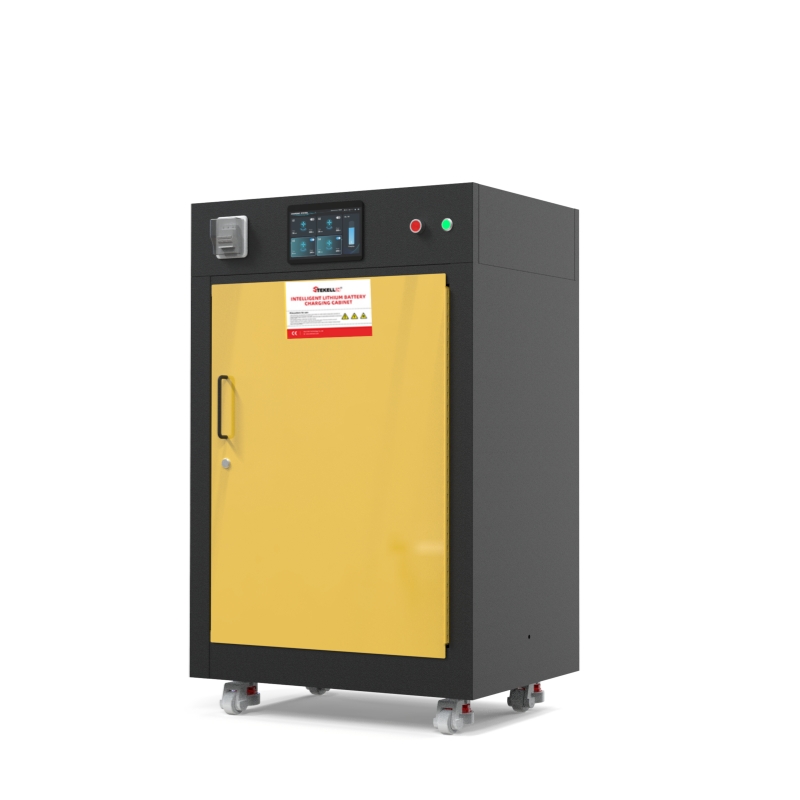

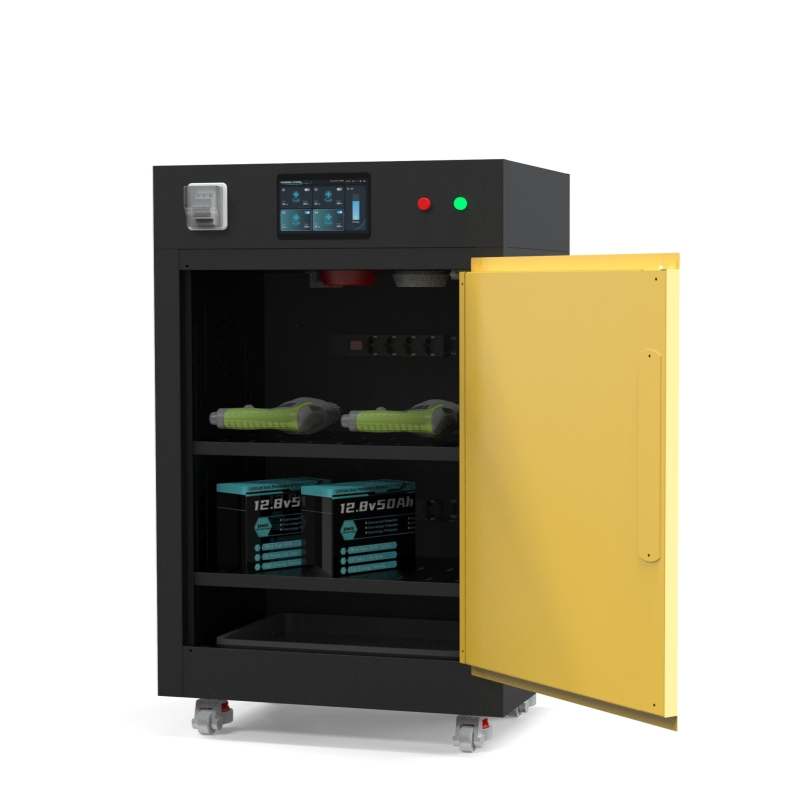

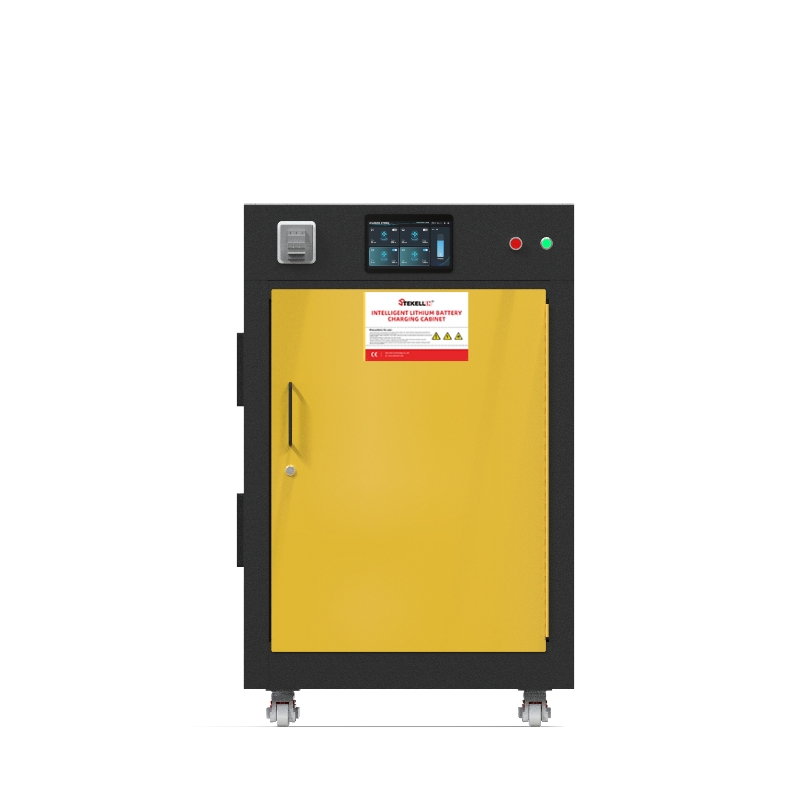

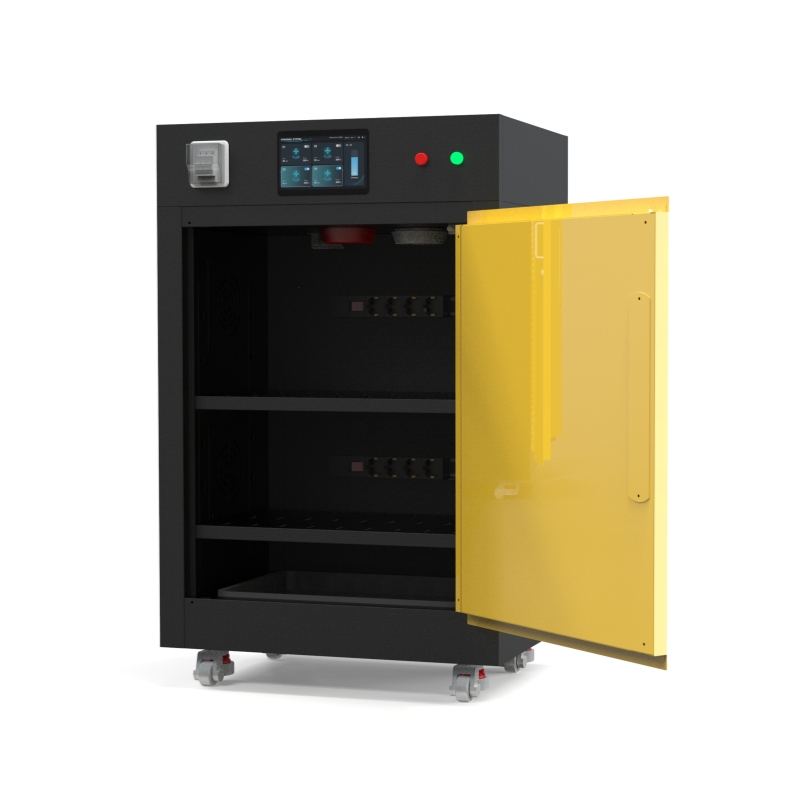

• Smart Safety Charging Cabinet
• Lithium Ion Charging and Storage
• Meet safety regulations
• Reduce fire risks
1. Cabinet: 1.0mm cold-rolled steel plate, double-layer structure.
2. Cabinet door: 1.0mm cold-rolled steel plate, double-layer structure, with black zinc alloy handle.
3. Laminate: 1.2mm galvanized laminate with open hole design for ventilation and heat dissipation; bottom with PP anti-leakage tray to prevent leakage of lithium battery liquid.
4. Hinge: piano-type hinge smoothly closed, easy to open and close 180 degrees.
5. Casters: four wheels at the bottom, with adjustable amplitude for convenient movement and smooth support, to ensure cabinets are sited at ground floor-level.
6. Leakage groove: 50mm high anti-leakage groove makes the accidental flow of liquid does not spill.
7. Lighting: LED soft light lighting by micro switch.
8. Charging Module: Customized Power Distribution socket strips with overload protection.
9. Temperature and humidity alarm system, with Separate smoke detector.
10. Equipped with 2 groups of heat dissipation fans, natural ventilation and time-controlled mechanical ventilation combined to achieve efficient ventilation cycle.
11. Optional built-in fire extinguishing is triggered automatically in the event of a fire.
12. Upgraded 10inch touch screen for power and system controling.
Model No. (manual door) | TEK661100E |
Color | Yellow and black |
| Screen | 4.3inch LED Screen |
Material Specifications | Cold rolled steel sheet with epoxy resin electrostatic coated |
Door Type | Single door, Manual/ Self-closing |
Locking Type | Safety lock |
Adjustable Shelves(pcs) | 2 pcs of adjustable shelves (with bottom PP anti-leakage tray) |
Socket Strip | 2*4pcs |
Casters | 4pcs of Forma wheels |
Ext. Dimension (HxWxD/mm) | H1100xW700xD490 |
Internal Dimension (HxWxD/mm) | H770xW590xD380 |
Net Weight(Kgs) | 80KGS |
