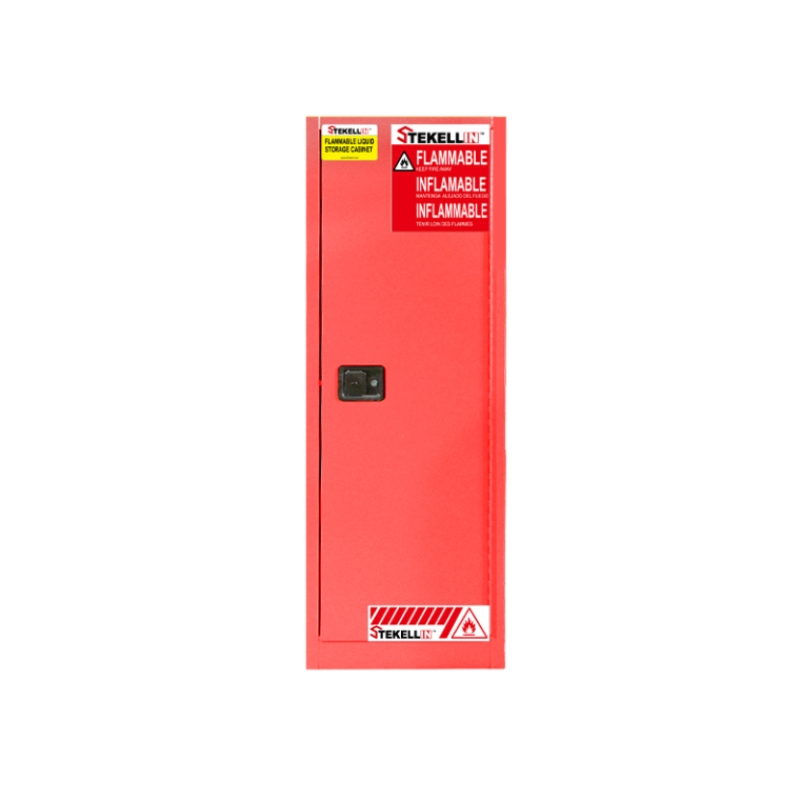

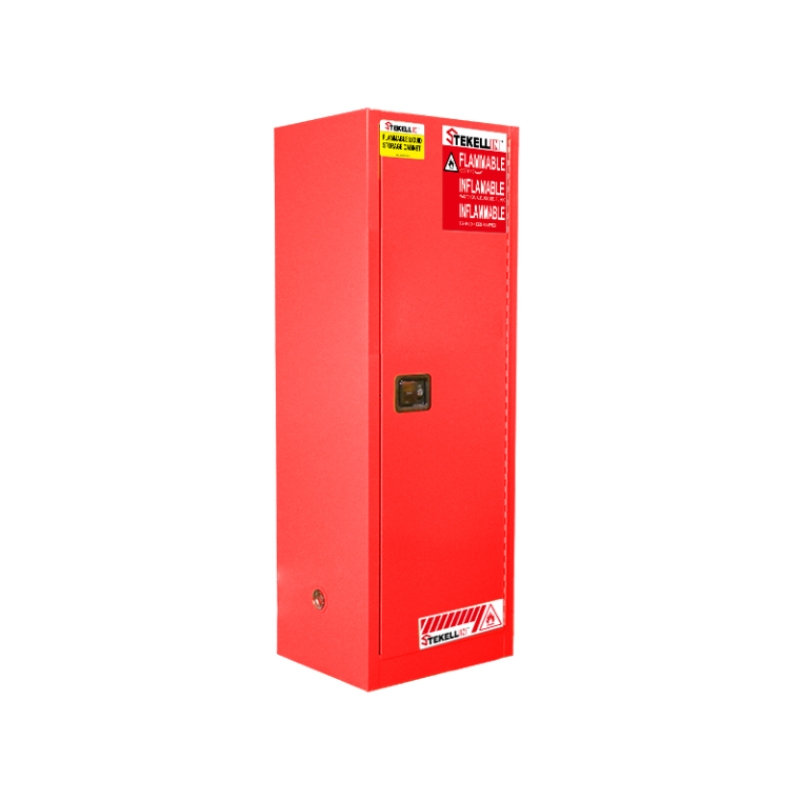

Model No: TEK610022R/ TEK610022RS
• For safe storage of solvents and combustible liquids
• Slim size for limit working space
• Storage capacity of 22 Gal (83L) of flammable and combustible liquids
• Fire-resistant design and meet safety regulations
• Factory direct and timely delivery
• Customized size available

• Designed to meet OSHA and NFPA standards;
• 1.0 mm thickness high-quality steel sheet with anti-corrosive and moisture-proof coating;
• Double-layer steel sheet welded structure, with a 38mm insulation in the middle for fire resistance;
• High quality galvanized steel door hinges to reach 180 degree door-opening;
• Three-point door latch makes the door open and close more flexible and stable;

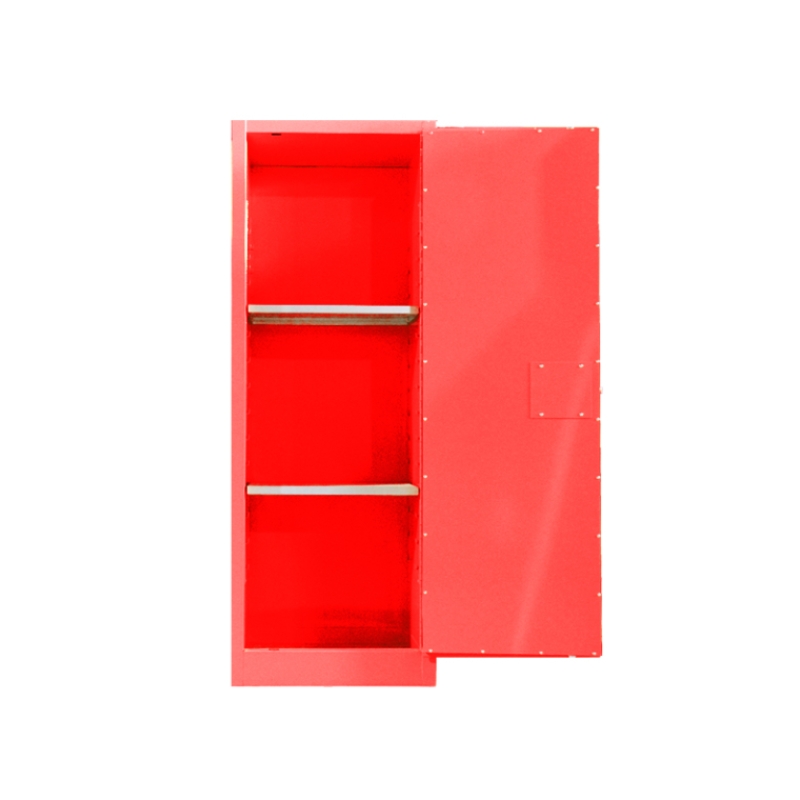

• Adjustable galvanized steel shelves and shelf hangers, with leakage-proof function, firm and practical;
• Fireproof vent, effectively dilute the concentration of volatile substances to prevent fire hazards;
• Industrial standard 5cm bottom sump containment to prevent liquid spillage;
• High quality reflective warning label for improving safety of cabinet in a weak-light area;
• In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding;
• Slim size keeps work areas flexible;
• Self-closing door can shut and latch automatically when a fusible link melts at 74 degree under fire conditions.
Model No. (manual door) | TEK610022R |
Model No. (self-closing door) | TEK610022RS |
Color | Red |
Material Specifications | CR steel plate |
Volume (Gal/L) | 22/ 83 |
Door Type | Single |
Adjustable Shelves(pcs) | 2 |
Shelf Loading Weight(Kgs) | 50 |

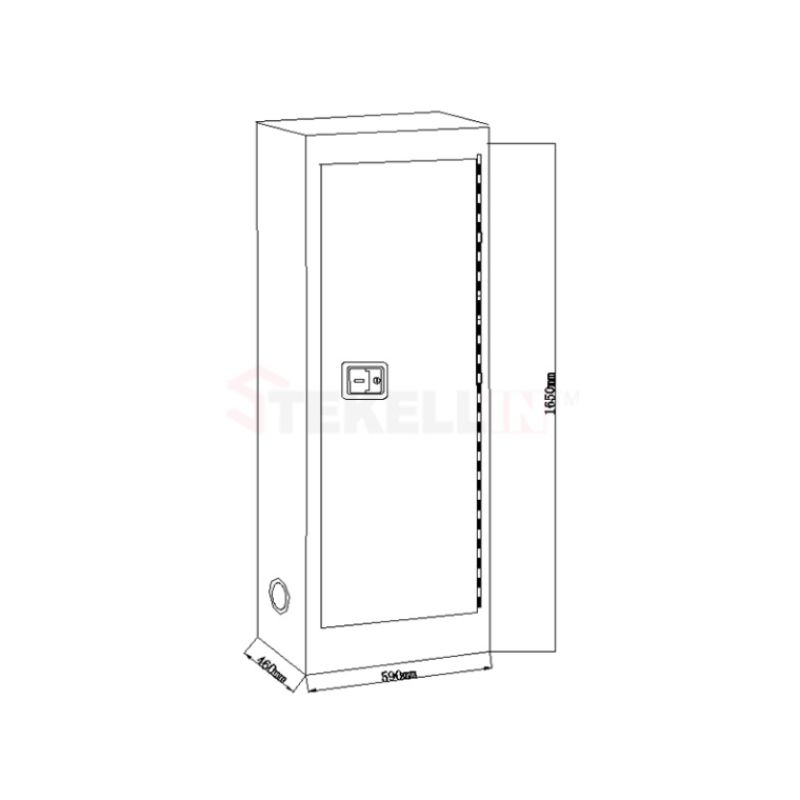

Ext. Dimension (HxWxD/mm) | 1650x590x460 |
Packing Dimension (HxWxD/mm) | 1790x660x530 |
Net Weight(Kgs) | 65 |
Gross Weight (Kgs) | 81 |
