Model No: TEK641200S/ TEK641500S/ TEK641800S
• For protecting laboratory staffs from noxious fumes
• Metal epoxy-coated oven-tempered structure
• Applicable to experiments in high temperature
• Flat package method
• Complying to safety regulations
• Timely delivery
1. 7mm epoxy-covered metal as hood structure and 4mm steel sheet as the internal structure;
2. Tempered glass sliding front sash;
3. Air suction from both of the top and back panel;
4. LED lighting at 800 LUX, with optional rupture protection;
5. Used to protect laboratory staffs from noxious fumes when working with acids, dangerous gas, organic solvent etc;
6. Harmful and unpleasant chemical fumes can be removed from the controlled environment to facilitate a safe and pleasant work conditions;
7. Accessories (standard and optional/customized) to help fume hood realize variety of function and meet different experiments proceeding requirement in the lab;
8. Applicable to experiments in high temperature;
9. For 1-3 laboratory staff members operation separately or together;
10. Flat packing method to save volume and make the transportation more efficient;
11. Widely applied in chemical, medical, vehicle, university and scientific institution;
12. CE certificated and in line with OSHA and NFPA standards.

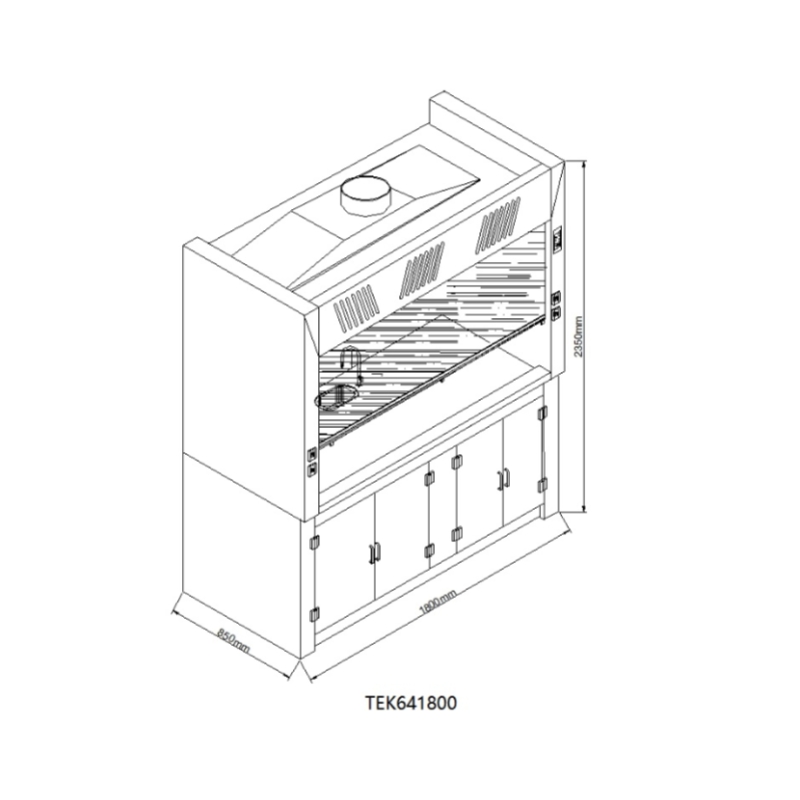

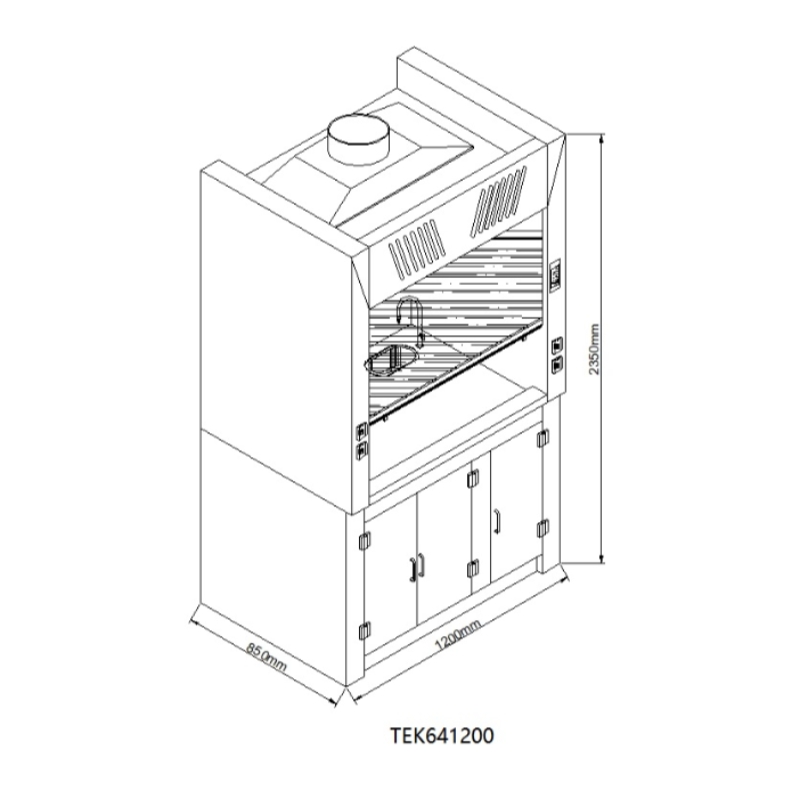

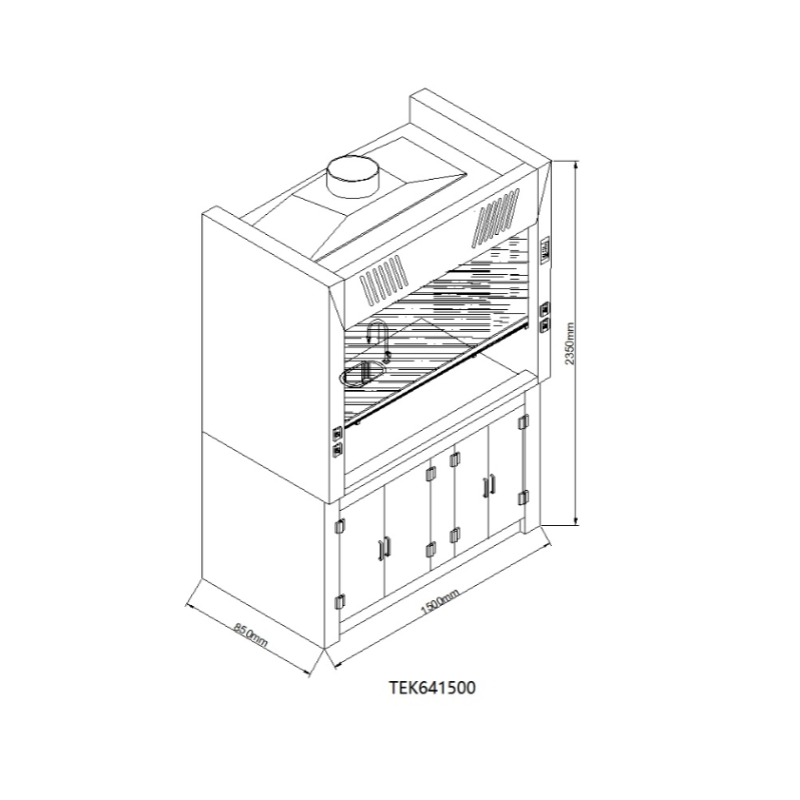

Model No. | TEK641200S | TEK641500S | TEK641800S |
Color | Blue/White | Blue/White | Blue/White |
Material Specifications | 7mm epoxy-covered metal as hood structure and 4mm steel sheet as the internal structure | ||
Cupboard Door Type | Double Doors/ Manual | Three Doors/ Manual | Four Doors/ Manual |
Works Matching | 1 | 2 | 3 |
Electric Power | Standard AC220V/10A or customized | ||
Ext. Dimension (HxWxD/mm) | 2350x1200x800 | 2350x1500x800 | 2350x1800x800 |
Packing | Flat packing in 1 Package | ||
Net Weight (Kgs) | 225 | 285 | 345 |
Gross Weight (Kgs) | 250 | 310 | 370 |
Standard Accessories | Counter top (Steel plate / Epoxy board / ceramic board) | ||
| Sash(5MM transparent tempered glass) | |||
| Light device( Fluorescent lamp) | |||
| Electric power socket( AC220V/10A or customized) | |||
Optional Accessories | Plastic Sink, Air valve, Water tap, Gas tap | ||
| Ventilated system & PP centrifugal fan | |||
| Intelligent control panel | |||
| Carbon Box for purifying before exhaust emission | |||
